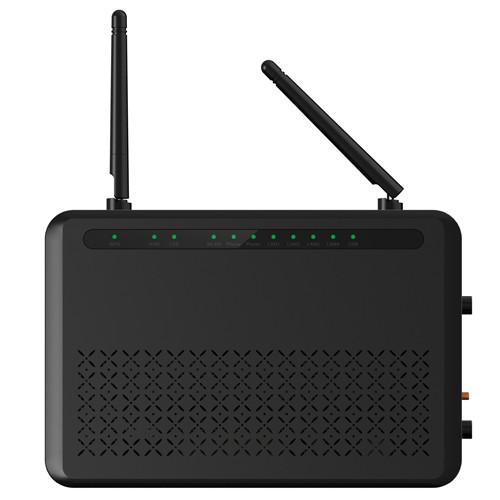

FTTH GPON Fiber Optic Network Terminal / GPON ONU Wifi GPM1311W

GPON ONT Optical Network Terminal Wifi GPM1311W(4+1)

GPM1311W is an GPON router pack deploying the latest 802.11n technology, and with 2.4G Wifi 11n2*2. It is designed for home and SOHO users who seek extreme mobility, high speed wireless connection and better wireless coverage while maintaining high-Level security for their Internet connection. This high performance PON router has integrated advanced Firewall, auto-sensing detection 1000M BASE-T Ethernet ports for local network to meet the demand of high-end market.

Interface: 1GE+3FE+1FXS(POTS)+1*USB2.0
WIFI: 2.4G, 11n2*2 External Antenna

Specification:

Model No.	GPM1311W(1GE+3FE+1FXS+Wifi)
Size	187.512551.5mm

1. H/W Features
Product Feature	Description
WAN(PON)	1x GPON ITU-TG.984.x PON connector:SC/UPC
LAN	Three RJ-45 Port (8p8c, Yellow color, unshielded) 10/100Mpbs FE One RJ-45 Port (8p8c, Yellow color, unshielded) 10/100/1000Mpbs GE N-way, Automatic speed negotiation supported. Auto-sensing, auto-detection MDI/ MDI-X



USB Interface	1*USB2.0 Host ports
WLAN	2xExternal antenna,11n 2x2, 2.4GHz
	IEEE 802.11b, IEEE 802.11g, IEEE802.11n compliant
	Operating Frequency:
	2.4GHz Band: 2400 ~ 2497MHz ISM band
	Output Power:
	The maximum allowable RF power level is subject to specified nation regulation.
	Typical RF Output Power (tolerance +/-2dB) and Data Rate at each RF chain, and at room Temp. 25degree C
	HT20/ HT40
	802.11n section for 2.4G Band:
	802.11g:
	- 15dBm at 6M/9M bps
	- 15dBm at 12M/18M bps
	- 15dBm at 24M/36M bps
	- 13dBm at 48M/54M bps
	802.11b:
	Typical 16dBm (+/-2dB) at 11, 5.5, 2, and 1Mbps
	Peak Gain: 2.0 dBi
	Impedance: 50 Ohm nominal
	Wi-Fi 11b/g/n and WPS Certified (WPS will be optional)
Power Switch	support
Wireless ON/OFF Switch	support
Factory Reset Button	support
Consol pin	None
TR-069	support
WPS	support
Dying Gasp	support
