CM-3011 Docsis Cable Modem / Fastest Cable Modem Compliant With Euro DOCSIS 3.0/DOCSIS 3.0

Docsis 3.0 and EuroDOCSIS 3.0 Cable Modem CM-3011 Ethernet over Coaxial Cable of CATV System

● Broadcom Chipset BCM3383GU
● Compliant with EuroDOCSIS3.0/DOCSIS3.0
● Support 8x4 or 16x4 Optional
● FBC(Full Band Capture)
● Support Quickly Change Channels
● Integrate MIB with Frequency Memory Function
● Support SNMP, TCP/IP, TFTP Protocol
● With 1*GE port

Specifications:

Euro-DOCSIS
RF Downstream (Receiving)
Frequency Range	108-1002 MHz/112-1002 MHz optional
Modulation Mode	64QAM or 256QAM
Input Level	43~73 dBuV (64QAM) 47~77dBuV (256QAM)
Symbol Rate	6.952 Msym/sec
Bandwidth	8MHz
Input Impedance	75 ohm
RF Upstream (Transmitting)
Frequency Range	5-65Mhz /5-85Mhz optional
Output Level(TDMA)	Modulation Mode		Ch1		Ch2	Ch3/4
	QPSK		+61 dBmV		+58 dBmV	+55 dBmV
	8 QAM		+58 dBmV		+55 dBmV	+52 dBmV
	16 QAM		+58 dBmV		+55 dBmV	+52 dBmV
	32 QAM		+57 dBmV		+54 dBmV	+51 dBmV
	64 QAM		+57 dBmV		+54 dBmV	+51 dBmV
Output Level (S-TDMA)			Ch1		Ch2	Ch3/4
			+56 dBmV		+53 dBmV	+53 dBmV
Symbol Rate	TDMA: 160, 320, 640, 1280, 2560, 5120 KHz S-CDMA: 1280, 2560, 5120KHz
Bandwidth	TDMA: 200, 400, 800, 1600, 3200, 6400 KHz S-CDMA: 1600, 3200, 6400 KHz
DOCSIS(US)
RF Downstream (Receiving)
Frequency Range	91-1000 MHz
Modulation Mode	64QAM or 256QAM
Input Level	45~75 dBuV
Symbol Rate	5.069 Msym/sec(64QAM) 5.361 Msym/sec(256QAM)
Bandwidth	6MHz
Input Impedance	75 ohm
RF Upstream (Transmitting)
Frequency Range	5-42Mhz
Output Level(TDMA)	Modulation Mode		Ch1		Ch2	Ch3/4
	QPSK		+61 dBmV		+58 dBmV	+55 dBmV
	8 QAM		+58 dBmV		+55 dBmV	+52 dBmV
	16 QAM		+58 dBmV		+55 dBmV	+52 dBmV
	32 QAM		+57 dBmV		+54 dBmV	+51 dBmV
	64 QAM		+57 dBmV		+54 dBmV	+51 dBmV
Output Level(S-TDMA)			Ch1		Ch2	Ch3/4
			+56 dBmV		+53 dBmV	+53 dBmV
Symbol Rate	TDMA: 160, 320, 640, 1280, 2560, 5120 KHz S-CDMA: 1280, 2560, 5120KHz
Bandwidth	TDMA: 200, 400, 800, 1600, 3200, 6400 KHz S-CDMA: 1600, 3200, 6400 KHz
LED light
Power: Status Display D/S:Downstream Status Flash: Searching Down Channel On: Find the Down Channel and Lock U/S:Upstream Status Flash: Searching up Channel (Distance Measuring) On: Find up Channel and Finish Distance Measuring Online: Status Display Flash: Registering On: Finish Registering and Connect Communication ENET: Status display Off: Abnormal Connection Flash: Transmitting or Receiving the Data On: Normal Connection
Chipset and Memory
Main Chipset		BCM3383GU
Memory		Flash	4MB SPI FLASH
		DRAM	128MB DDR2
		EEPROM	None

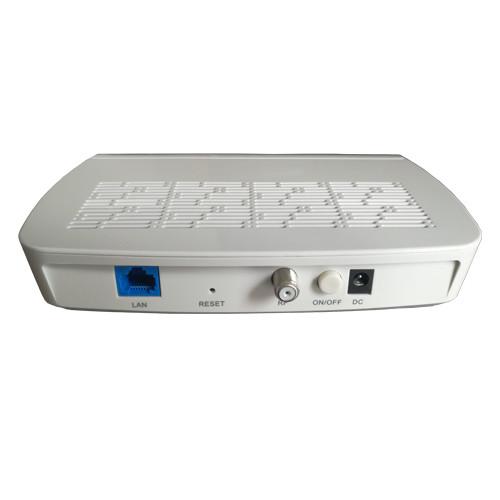

Interface
Power socket		1
Power switch		1
F Connector		1
Reset		1
Lan port		1x GbE port 10/100/1000 Base-Tx
Power management
Input Voltage		DC-12V
Power consume		Running		≤6W
Size		18313041
Weight		0.2Kg
