| Euro-DOCSIS |
| Downstream (Receiver) |
| Frequency (edge to edge) | 112-1002 MHz |
| Demodulation | 64QAM or 256QAM |
| Input level range | 43~73 dBuV (64QAM) 47~77dBuV (256QAM) |
| Symbol rate | 6.952 Msym/sec |
| Bandwidth | 8MHz |
| Input impedance | 75 ohm |
| Input reflect loss | >=6 dB |
| Upstream (Transmitter) |
| Frequency | 5-65MHz (5-85MHz) |
Output signal power (TDMA) | Modulation | 1 Channel | 2 Channel | 3 or 4 Channel |
| QPSK | +61 dBmV | +58 dBmV | +55 dBmV |
| 8 QAM | +58 dBmV | +55 dBmV | +52 dBmV |
| 16 QAM | +58 dBmV | +55 dBmV | +52 dBmV |
| 32 QAM | +57 dBmV | +54 dBmV | +51 dBmV |
| 64 QAM | +57 dBmV | +54 dBmV | +51 dBmV |
Output signal power (S-TDMA) | Modulation | 1 Channel | 2 Channel | 3 or 4 Channel |
| QPSK/8-64QAM | +56 dBmV | +53 dBmV | +53 dBmV |
| Modulation way | QPSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM |
| Modulation rate (nominal) | TDMA: 160, 320, 640, 1280, 2560, 5120 KHz
S-CDMA: 1280, 2560, 5120KHz |
| Bandwidth | TDMA: 200, 400, 800, 1600, 3200, 6400 KHz S-CDMA: 1600, 3200, 6400 KHz |
| Output impedance | 75 ohm |
| Input reflect loss | >= 6 dB |
| DOCSIS |
| Downstream (Receiver) |
| Frequency (edge to edge) | 108-999Mhz |
| Modulation | 64QAM or 256QAM |
| Input level range | 43~73 dBuV (64QAM) 47~77dBuV (256QAM) |
| Symbol rate | 5.069 Msym/sec (64QAM) 5.361 Msym/sec (256QAM) |
| Bandwidth | 6MHz |
| Input impedance | 75 ohm |
| Input reflect loss | >= 6 dB |
| Upstream (Transmitter) |
| Frequency | 5-42MHz |
Output signal power (TDMA) | Modulation | 1 Channel | 2 Channel | 3or4 Channel |
| QPSK | +61 dBmV | +58 dBmV | +55 dBmV |
| 8 QAM | +58 dBmV | +55 dBmV | +52 dBmV |
| 16 QAM | +58 dBmV | +55 dBmV | +52 dBmV |
| 32 QAM | +57 dBmV | +54 dBmV | +51 dBmV |
| 64 QAM | +57 dBmV | +54 dBmV | +51 dBmV |
Output signal power (S-CDMA) | Modulation | 1 Channel | 2 Channel | 3 or 4 Channel |
| QPSK/8-64QAM | +56 dBmV | +53 dBmV | +53 dBmV |
| Modulation way | QPSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM |
| Modulation rate (nominal) | TDMA: 160, 320, 640, 1280, 2560, 5120 KHz S-CDMA: 1280, 2560, 5120KHz |
| Bandwidth | TDMA: 200, 400, 800, 1600, 3200, 6400 KHz S-CDMA: 1600, 3200, 6400 KHz |
| Output impedance | 75 ohm |
| Input reflect loss | >= 6 dB |
| Maximum (DS/US) rat |
| DOCSIS® 3.0 | (Theoretical) DS: 343 Mbps US: 131 Mbps |
| (Euro)DOCSIS® 3.0 | (Theoretical) DS: 445 Mbps US: 131 Mbps |
| LED indicator light |
Power: Off: boot fail Light: boot success D/S: Flash: searching Light: locked U/S: Flash: searching Light: locked Online: Flash: Registering Light: Registered | LAN: Off: disconnection Flash: transmitting or receiving Light: connected
|

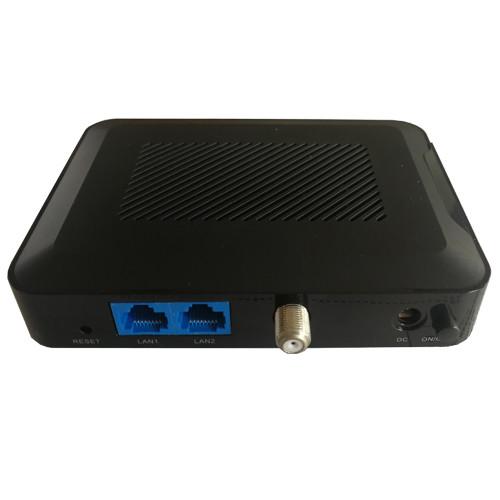

| Physical Interface/Button |
| Power Jack | 1 |
| Power | 1 |
| F-type female 75Ω | 1 |
| Reset | 1 |
| LAN | 2x 10/100/1000 Mbps |
| Power management |
| Input voltage | DC-12V |
| Working power | =< 9.5W |
| Environment |
| Temperature | 00C to 400C |
| Humidity | 10% - 90% (non-condensing) |
| Size | 185*138*35mm |
| Weight | 0.5kg |
| Packages |
| 1 | 1×User Guide |
| 2 | 1×1.0M Ethernet Cable |
| 3 | 4×Label(SN,MAC address) |
| 4 | 1×Power Adapter |
