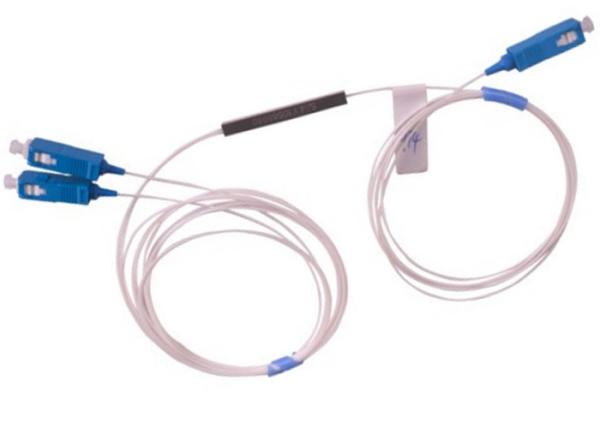

FTTH Fiber Optic Accessories FBT Optical Fiber Splitter Coupler For CATV

Fiber Optical Accessories FTTH Passive Optical Device FBT Optial Fiber Splitter Coupler

(FBT) Fused Biconical Taper splitter based on the traditional technology, it is to bundle together two or more optical fibers, and then pull the cone machine melt stretching, and real-time monitoring the change of the ratio, spectral ratio requirements after melt stretching, one side retain a single fiber (the rest of the cut) as input, the other end is a multi-channel output

Features

● Different combinations of coupling ratio
● Low crosstalk & excess loss
● High optical return loss
● Available in dual/single wavelength operation
● Optional connectors termination upon request

Application

● CATV, LAN, WAN network
● Active devices
● Optical fiber communication system
● Telecommunication network
● EPON/GPON

Specifications:

Parameter	P grade	A grade		Unit
Port Type	1x2 or 2x2			/
Operating Wavelength	1310 ± 40 & 1550 ± 40			nm
Maximum Insertion Loss	≤3.5	≤3.7		dB
Return Loss	≥55			dB
Additional Loss	≤0.15	≤0.20		dB
Return Loss Uniformity	0.4	0.7		dB
Polarization Dependent Loss	≤0.10	≤0.15		dB
Directivity	≥55			dB
Fiber Type	Corning SMF-28e or Customer specified			/
Operating Temperature	-40~+85			℃
Storage Temperature	-40~+85			℃
Cable Dia	250um Bare fiber or 0.9 Loose tube			mm
Package Dim	3mm x 60mm stainless steel tube			mm
Double Window Splitter (1310/1550nm)
Split Ratio	Insertion loss (dB) P grade		Insertion loss (dB) A grade	Unit
50/50	≤3.5		≤3.7	dB
45/55	≤3.9/2.9		≤4.2/3.1	dB
40/60	≤4.7/2.7		≤5.0/2.9	dB
30/70	≤6.0/1.9		≤6.4/2.2	dB
20/80	≤7.9/1.2		≤8.5/1.4	dB
10/90	≤11.3/0.6		≤12.7/0.8	dB
5/95	≤15.0/0.4		≤16.0/0.5	dB
1/99	≤23.5/0.3		≤24.0/0.4	dB
Single Window Splitter
Split Ratio	Insertion loss (dB) P grade		Insertion loss (dB) A grade	Unit
50/50	≤3.6		≤3.7	dB
45/55	≤3.8/2.8		≤4.0/3.0	dB
40/60	≤4.4/2.5		≤4.8/2.8	dB
30/70	≤5.6/1.8		≤6.1/2.0	dB
20/80	≤7.6/1.2		≤8.0/1.3	dB
10/90	≤10.8/0.6		≤12.0/0.8	dB
5/95	≤14.0/0.4		≤14.5/0.5	dB
1/99	≤21.0/0.2		≤21.5/0.3	dB

Notes:

1. All values specified are without connectors.

2. IL will increase 0.2dB when add one connector.

3. Customized service is available.
