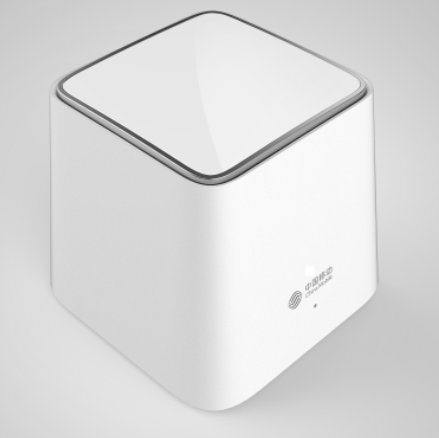

2.4G/5G Wifi Mesh Router CS-1000ME Dual Band Omnidirectional Built In Antenna

Gigabit Dual-band omnidirectional built-in antenna 2.4G/5G Wifi Mesh Router CS-1000ME

1.Summary

MESH routing system CS-1000ME is a Gigabit dual-band home wireless networking suite product. Each node has a 10/100/1000Mbps WAN/LAN adaptive port, a 10/100/1000Mbps adaptive LAN port and a wireless transmission rate of 1167 Mbps.

2.Product Specification

2.1 Basic configuration

The device name		Mesh Wi-Fi
The device type		Mesh Wi-Fi (Table-Top)
The device model		CS-1000ME
WAN		1*10/100/1000MWAN/LAN adaptive port
LAN		1*10/100/1000MWAN/LAN adaptive port
WLAN		2.4G 300Mbps,5G 867Mbps
Hardware Indicators	The main chip	RTL8197FS-VE5
	Clock Speed	1GHz
	Flash Storage	16MByte or Higher	SOP8
	Ram Capacity	128MByte or Higher
	Power Specification	12V1A
	Light	A Comprehensive Light	(Red or yellow or green)
	Reset	Reset
	Aerials	2*3dBi	Dual-band omnidirectional built-in antenna
	Wireless transmission rate	1167Mbps
	Wireless Standards	802.11b/g/n 2.4GHz； 802.11ac/a/n 5GHz；
	Transfer Standards	802.3；802.3u；
	MESHNetworking standards	802.11s；
	Roaming Standard	802.11v/r;

2.2 Interface requirements


Category	Requirement	Standard
Wired Interface	WAN ports	1*10/100/1000 Base-T ports,It meets the IEEE802.3/802.3u standard supports full-duplex/half-duplex flow control.
	LAN ports	1*10/100/1000 Base-T ports,It meets the IEEE802.3/802.3u standard supports full-duplex/half-duplex flow control.
	Power Interface	One power interface, router uses external power adapter to supply power. The external power adapter shall: 1. Meet the EMC requirements of YD/T 983 and pass CCC certification; 2. Input voltage: 198-242V-50Hz; 3. Output voltage DC: 12V (+5%), ripple range (+200mV), output current: 1A; 4. The MTBF time of power supply is more than 30000 hours. 5. The power interface of the equipment itself and the DC output interface of the power adapter should be a unified international standard circular interface with a diameter of 2.1 mm. 6. The DC output power supply line of the adapter can be equipped with EMI absorption magnetic ring. 7. Under normal conditions, the insulation resistance between the metal housing of the equipment and the power cord shall not be less than 50M. 8. There should be lightning protection and surge protection tests. The lightning protection level should be at least 1.5KV.
Wireless Interface	Wi-Fi Wireless Network	It meets the standard of 802.11protocol,supports802.11b/g/n/a/ac,supports 2.4 GHz and 5 GHz,and has a wireless rate of 1167 Mbps. Two built-in 3dBi omnidirectional dual-band antennas; Up to 40 wireless devices are allowed.

2.3 Key and indicator

Functional description

System reset

Press the RST button for 6 seconds, release the indicator after flash, turn the indicator into long light and restart the system, and finally return the flashing indication to restore the factory settings successfully.

Indicator light

Green Long Bright: Good Connection Quality

Yellow Long Bright: General Connection Quality

Red Long Bright: Connection Failure

3.Basic requirements

3.1 Hardware requirements

LAN upstream devices should ensure the stability and reliability of hardware structure, antenna connection, etc. RAM is not less than 128 MByte, Flash is not less than 16 MByte.

3.2 Design
