1550nm EDFA Optical Amplifier GFD1550-EBM(SC/2U) 32ports With WDM xPon OLT Input/ Erbium Doped Fiber Amplifier

● 32Ports, each optical output power customized
● Embedded WDM for xPon OLT application (Optional)
● Single/Dual input optional when placing order

● Embedded optical switch for dual input, switching power can be set by front panel or web SNMP.
● Double cooling system to protect the pump laser.
● RJ45 Port for Plug-in SNMP system can realize remote management at any time.
● Standard RS232 Port.
● Adopting JDSU, Bookham or Fitel laser.
● LCD displays the parameters, functions and trouble alarm.
● Dual Switch Power Supply with hot-plug, 90-265VAC or -48VDC optional

Specifications:

Diagram:

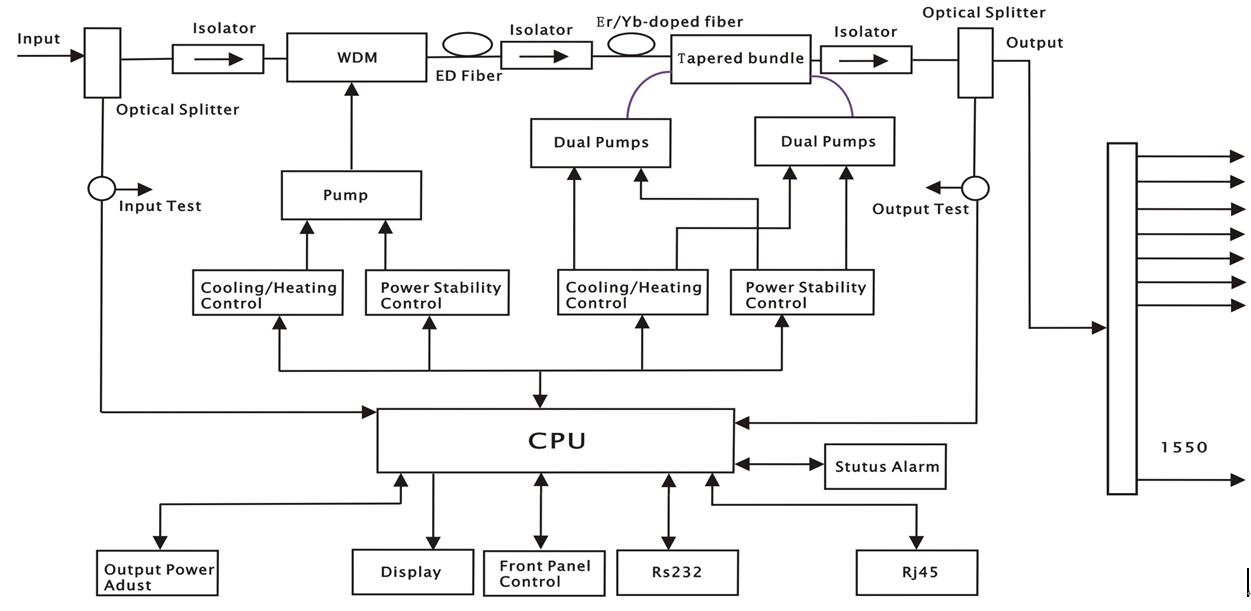

Single Input (Standard)

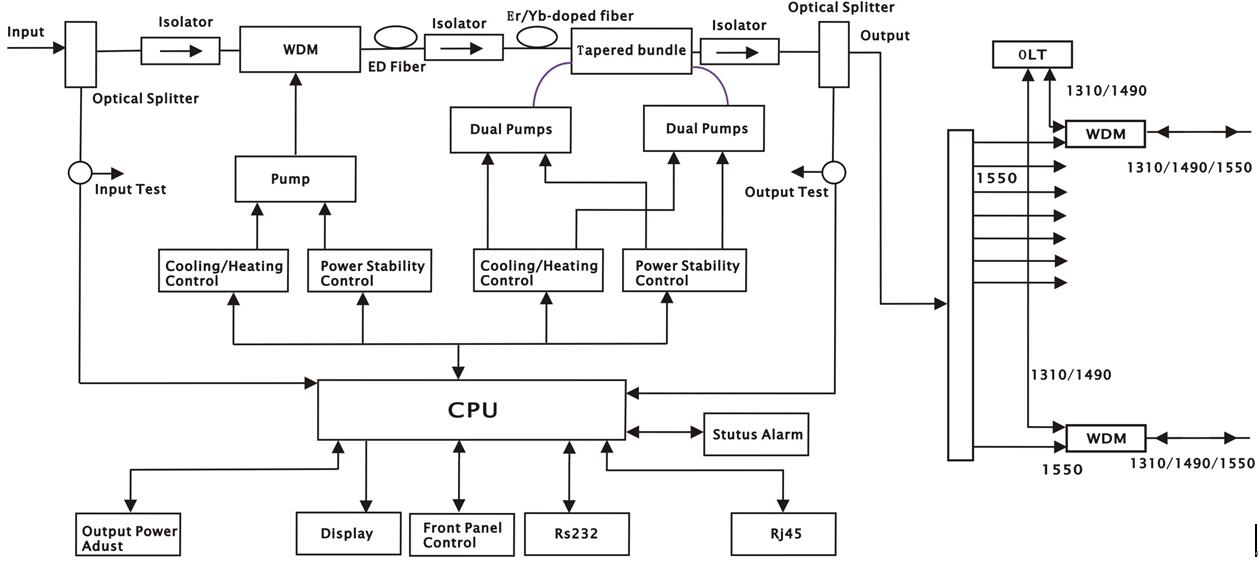

Single Input( With WDM)

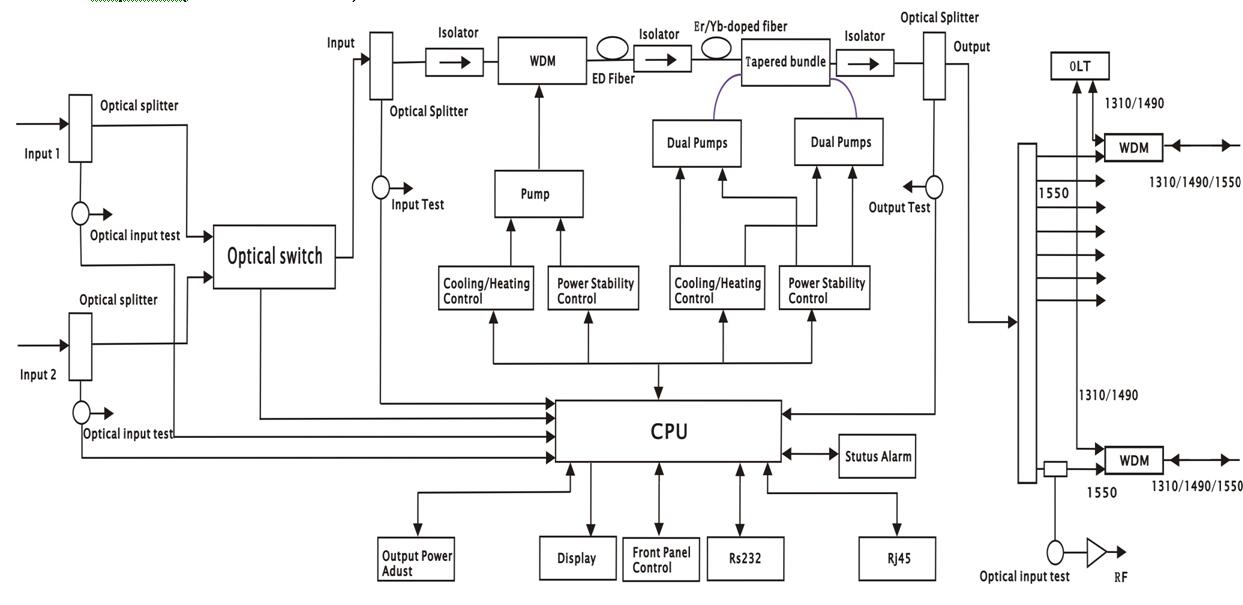

Dual Inputs( With WDM)

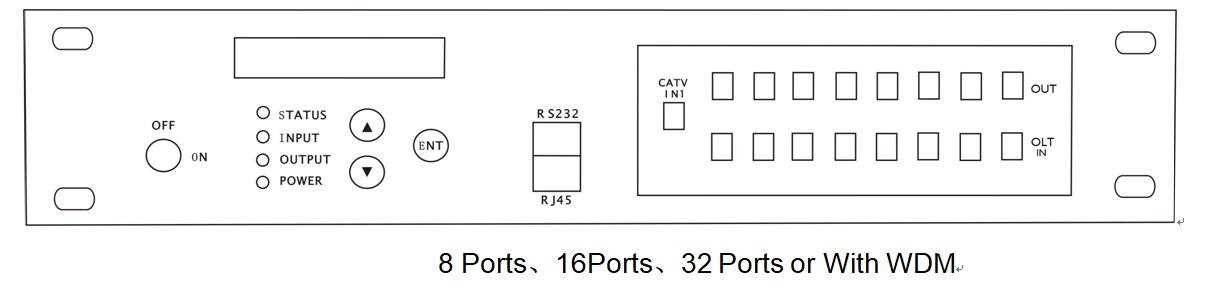

Front Panel

Single Input

Dual Inputs

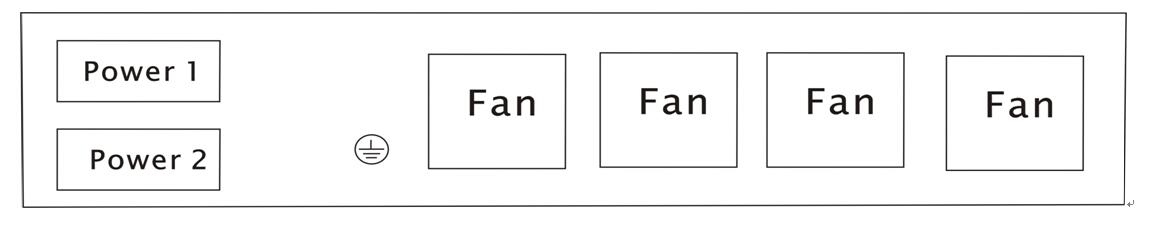

Rear Panel
