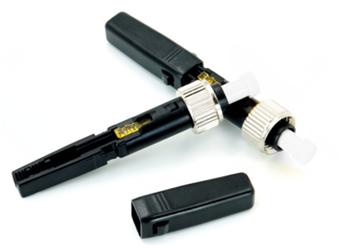

FC/UPC&APC Passive Electronic Components FTTH Fiber Optic Adaptor Fast Connector

Application

● Used to open the FTTH fiber terminal end.
● In the box, cabinet, such as wiring into the box.
● Off the back of the accidents such as fiber, maintenance.
● LAN, WAN, data and Video transmission.
● The construction of the fiber end user access and maintenance.

● Optical fiber access of mobile base station.

	Application	Picture
FC/UPC	Length 50mm 2x3 FTTH 2mm fiber optic cable 3mm fiber optic cable
FC/APC	Length 50mm 2x3 FTTH 2mm fiber optic cable 3mm fiber optic cable

Performance

● Insertion loss:≤0.40dB ,Return loss:≥45dB.

● Mechanical Durability:1000matings

● Storage temperature:-40℃to+85℃

● Operation temperature:- 40 ~ + 85 ℃

● Tensile Strength:>40N

● Number of repeated use:5 times above

Cabsat Industrial Limited is a high-tech enterprise base on Jiuzhou Group since 2004, and professional manufactory for optical fiber communication products, digital products, test instruments, etc.

We have a passel faithfulness and excellent engineers, and service team, and established long term cooperation with many overseas customers. Most of products sold to southeast Asia, Europe, South America, Middle East, etc.

Our main products include xPon system, Docsis Cable modem series, FTTH accessories, HFC broadband,Digital products, Test instruments, etc.
